Valve Spring Kit - TI Retainers - For 5/16" Valve Stem - EVO | Twin Cam
Highlights
- Made from heat treated chromoly conical ovate wire
- Hand measured and labeled specifically based on their coil bing / required open height
- Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
- Dyno proven and track tested

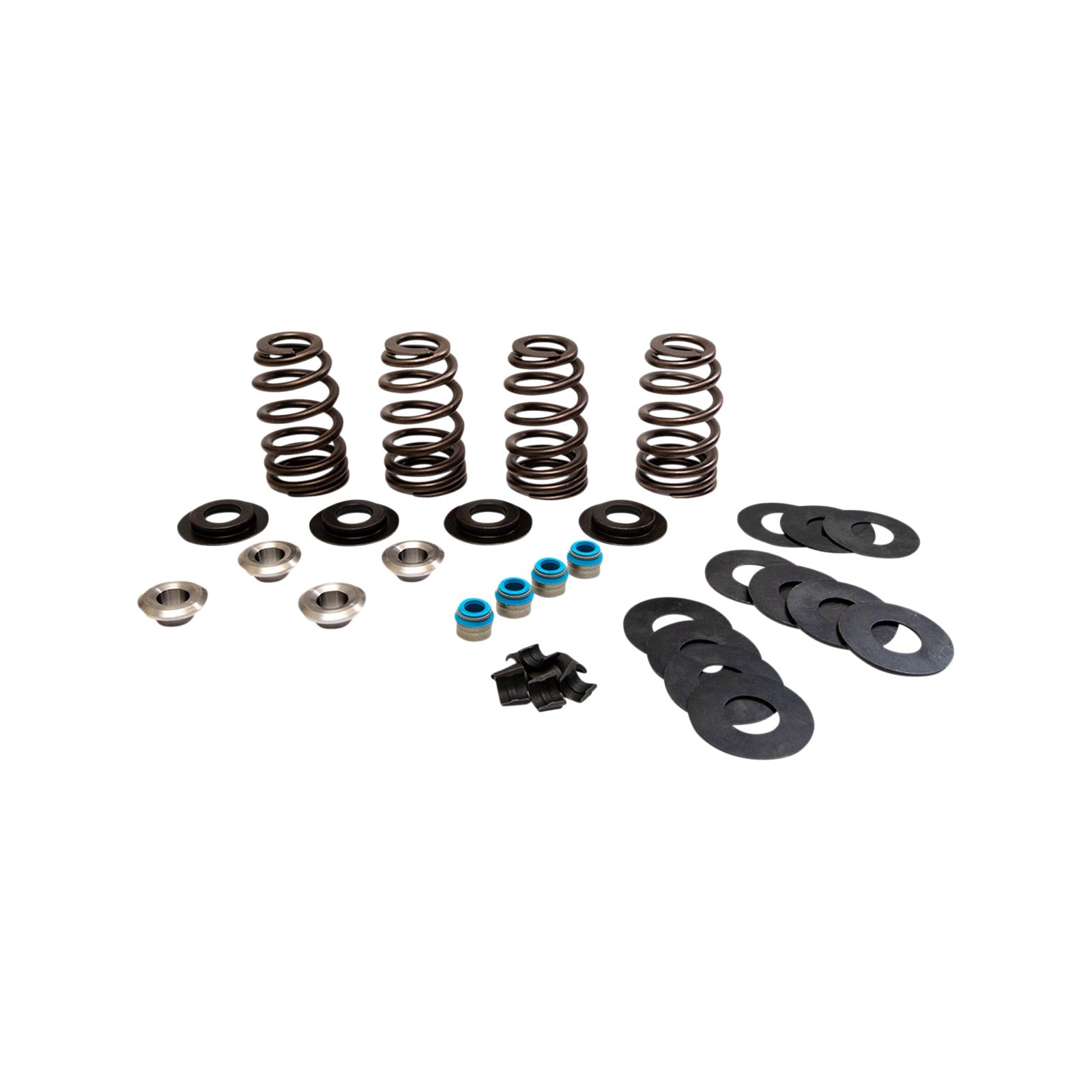

- Kit includes: Econo BeeHive® valve springs, lightweight 7° steel or titanium retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
- Up to 0.585" lift
- Seat lb / installed height:
- 183 lb @ 1.760" (0.510" lift)
- 175 lb @ 1.785" (0.535" lift)
- 172 lb @ 1.803" (0.553" lift)
- 165 lb @ 1.825" (0.574" lift)
- 163 lb @ 1.835" (0.585" lift)
- 380 lb @ 1.250" Open Height
- Coil Bind @ 1.180"
- Made in the USA
Notes
- Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs.
- Econo BeeHive® kit is direct replacement with no machining or rocker box clearance required for cams up to 0.574" lift for '84-'04 Big Twin and '86-'03 XL and up to .585" lift for '05-'17 Twin Cam.
+ Fitment
- 1986-1987 Harley-Davidson XLH1100 (Street)
- 1986, 1988, 1999-2001 Harley-Davidson XLH883 (Street)
- 1986-1995 Harley-Davidson XLH883DLX Sportster 883 Deluxe (Street)
- 1987, 1989-2003 Harley-Davidson Sportster 883 XLH (Street)
- 1987-1998, 2002-2003 Harley-Davidson XLH883HUG Sportster 883 Hugger (Street)
- 1988 Harley-Davidson Sportster 1100 XLH (Street)
- 1988-1998 Harley-Davidson XLH1200 (Street)
- 1995 Buell S2 Thunderbolt (Street)
- 1995-1996 Buell S2T Thunderbolt (Street)
- 1996-1998 Buell S1 Lightning (Street)
- 1996-2003 Harley-Davidson XL1200C Sportster 1200 Custom (Street)
- 1996-2003 Harley-Davidson XL1200S Sportster 1200 Sport (Street)
- 1997-2002 Buell M2 Cyclone (Street)
- 1997-2002 Buell S3 Thunderbolt (Street)
- 1997-2002 Buell S3T Thunderbolt (Street)
- 1998 Buell S1 White Lightning (Street)
- 1998 Harley-Davidson 883 Custom XLC (Street)
- 1999-2003 Buell X1 Lightning (Street)
- 1999-2003 Harley-Davidson 883 Custom EFI XLC (Street)
- 1999-2003 Harley-Davidson Sportster 1200 XLH (Street)
- 1999-2003 Harley-Davidson XL883C Sportster 883 Custom (Street)
- 2000-2003 Buell Blast (Street)
- 2001 Buell M2 Cyclone Low (Street)
- 2002 Buell M2L Cyclone (Street)
- 2002 Buell X1W White Lightning (Street)
- 2002-2003 Buell XB9R Firebolt (Street)
- 2002-2003 Harley-Davidson 1200 Custom EFI XLC (Street)
- 2002-2003 Harley-Davidson 1200 XLCP (Street)
- 2002-2003 Harley-Davidson 883 Roadster EFI XLR (Street)
- 2002-2003 Harley-Davidson XL883R Sportster 883 Roadster (Street)
- 2003 Buell XB9S Lightning (Street)
- 2003 Buell XB9S Lightning Low (Street)
Specs
| Application | Intake / Exhaust |
|---|---|
| Collar Material | Titanium |
| Material | Chromoly |
| Model | Econo Beehive |
| Product Name | Spring Kit |
| Riding Style | Street |
| Style | Ovate Wire Beehive |
| Type | Valve |
| Units | Kit |
