Camchest - Race Series(R) - Reaper 508 - Oil Cooled - M8

Highlights

• Billet 7075 aluminum oil pump, which is 50% harder and stronger than the factory pump, holding tighter tolerances under temperature
• Short travel hydraulic lifters have 0.115" of total travel and will increase rpm by decreasing valve float and valve-train harmonics while maintaining a quiet engine
• Deeper scavenge kidney ports over the HP+ series for even more scavenge flow volume
• 30% more pressure gear volume over stock for M-Eight Twin-Cooled motors
• 53% more scavenge gear volume over stock for M-Eight Twin-Cooled motors
• 27% more pressure and scavenge gear volume over stock for M-Eight Oil-Cooled motors
• 42% more scavenge volume with port sizing, matched passages and holes to the engine case for M-Eight Twin-Cooled motors and M-Eight Oil-Cooled motors
• 68% more oil volume to the crankshaft and connecting rod bearing for M-Eight Twin-Cooled™ motors and M-Eight Oil-Cooled motors
• 15°-25° cooler engine temperatures for M-Eight Twin-Cooled™ motors and M-Eight Oil-Cooled motors
• 15°-30° cooler oil temperatures for M-Eight Twin-Cooled™ motors and M-Eight Oil-Cooled motors
• 10-30 more psi of oil pressure for M-Eight Twin-Cooled™ motors and M-Eight Oil-Cooled motors
• Increases oil pressure, scavenge volume and engine oil flow
• Reduces wet sumping, blowby and oily air cleaners
• Magnets in oil pump to help protect gears and pressure relief valve
• Test results show 2 hp gain and 2 ft/lb of TQ gain to the rear wheel on M-Eight
• Feuling test results show a 50% reduction of engine sump oil level

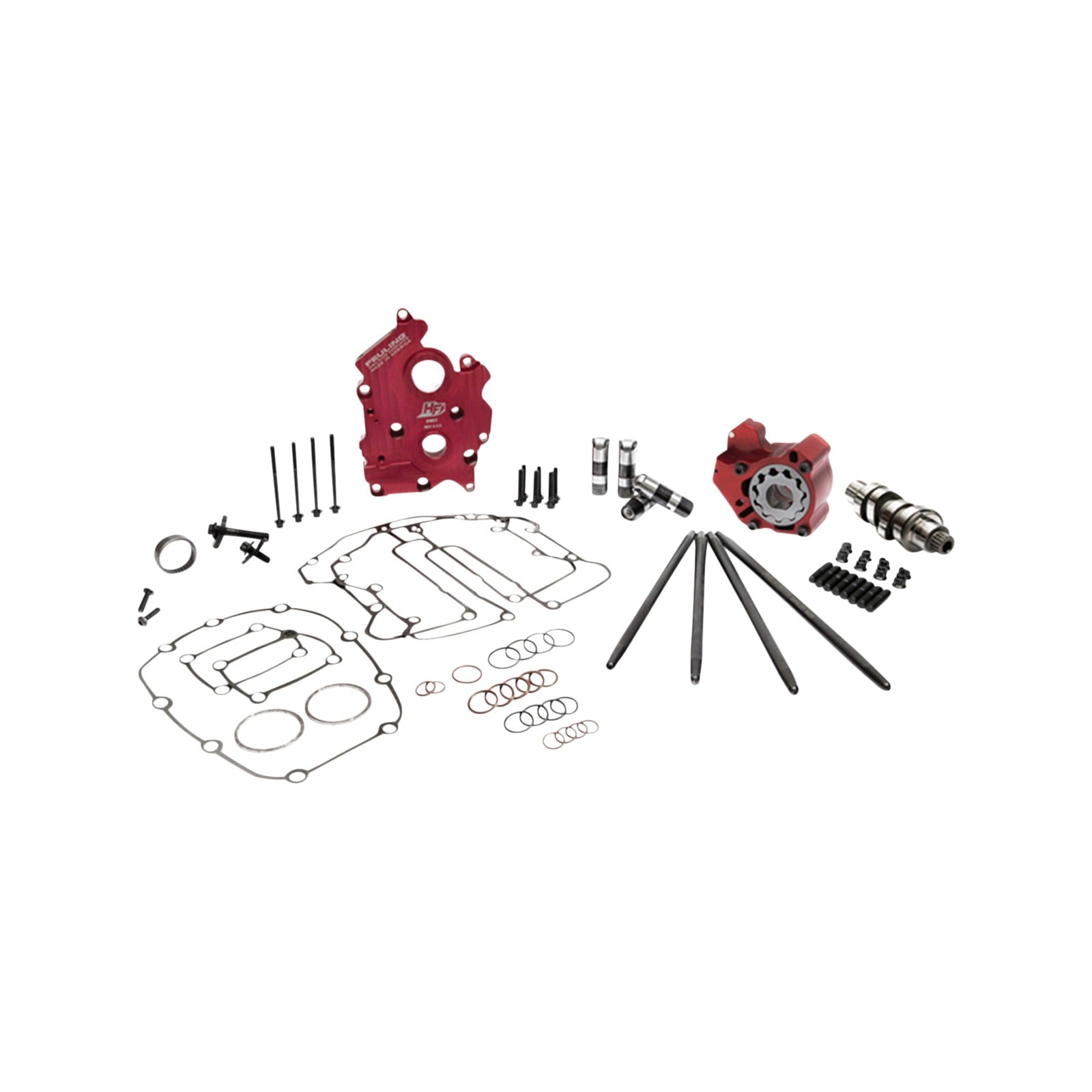

• Kit includes: Race Series® high volume oil pump, High Flow billet camplate, Reaper® Series camshaft, Race Series® short hydraulic roller lifters, one piece pushrods, Timken®/ Koyo® cam bearings, rocker arm studs/ nuts, gaskets, O-rings, ARP® cam/ crank fasteners, washers, moly paste and Loctite®
• Made in the USA

Notes

• Not for '23-'24 models with 121" VVT motor.
• Requires high lift valve springs.
• Includes:
• • Race Series® High Volume Oil Pump
• • High Flow Billet Camplate
• • Reaper Series® 508 Camshaft
• • Race Series® Short Travel Lifters
• • One Piece Pushrods
• • Timken/Koyo Cam Bearing
• • Rocker Arm Studs and Nuts
• • Gaskets
• • O-Rings
• • ARP Cam/Crank Fasteners
• • Washers
• • Moly Lube
• • Loctite
