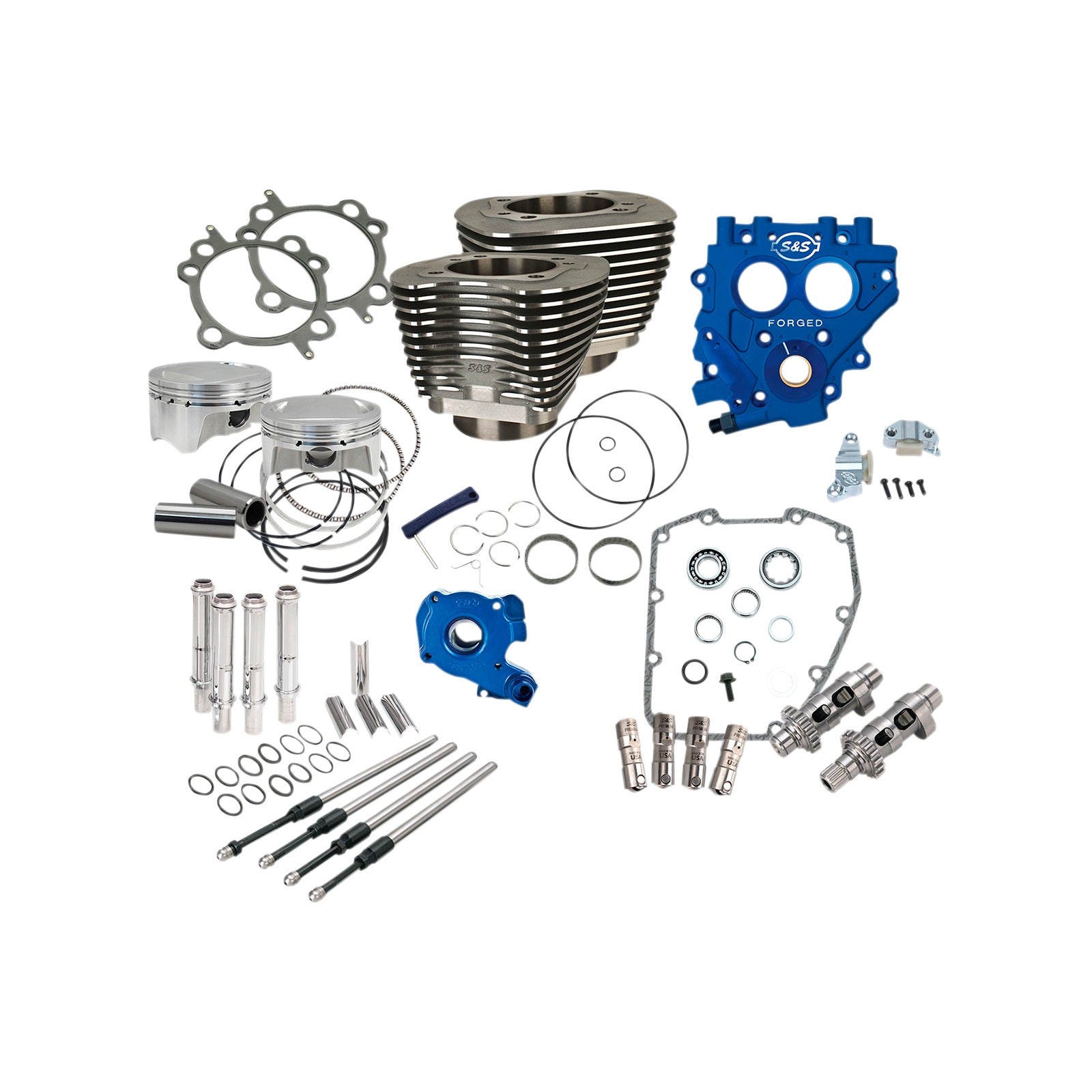

100" Power Package - 585CE - Chain Drive - Wrinkle Black - Twin Cam 88

Highlights

• Made in the USA
• S&S 4.000" Big-Bore Cylinders, Piston Kits, S&S 585 Easy Start(R) Cams, S&S Quickee Pushrods, TC3 Cam Support Plate, TC3 Oil Pump, and Precision Hydraulic Tappets are included in this kit
• S&S Cylinder
• 2x S&S 4.000" bore cylinders
• Low friction ductile cast iron liner
• Bolt in
• No maching, balancing, or splitting the crankcase
• Can be used with stock heads
• Increase displacement from 88 ci to 100 ci
• Piston Kit
• 2x 4.000" pistons for front and rear
• 2x 0.927" piston pins
• 4x Piston pin clips with installation tool
• 2x Ring packs which includes the top, second, oil rail and expander rings
• Provides 10.5:1 compression ratio
• S&S 585 Easy Start(R) Cam Specifications
• Intake: Open 20 degrees / Close 45 degrees / Duration at 0.053" 245 degrees / Valve Lift 0.585"
• Exhaust: Open 60 degrees / Close 20 degrees / Duration at 0.053" 260 degrees / Valve Lift 0.585"
• S&S Quickee Pushrods
• Adjustable with chrome tubes
• TC3 Cam Support Plate and TC3 Oil Pump
• Machined from aluminum forgings
• Ensures consistent oil pressure and engine longevity
• Precision Hydraulic Tappets

Notes

• Not for '06 Dyna.
• Not compatible with S&S 79 cc Super Stock® heads.
• Not recommended for Tri-Glide or other three wheel models due to lugging nature of these bikes.
• '99-'04 Twin Cams will require the additional purchase of valve spring kit (sold separately).
