Camchest Kit - 487 - Chain Drive - Oil Cooled - Race Series(R) Lifters - M8

Highlights

• 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
• Chain Drive
• 38° overlap
• RPM range 2,250 - 6,100
• Camshaft for 114" and 117" engine
• Responds very well to increased bore and or compression
• Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
• Includes cam bearing, cam/crank hardware and gasket/O-ring kit
• Full-travel hydraulic lifters made from machined steel designed with 0.200" of travel
• HP+ heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
• High flow 2.250 Chrome Moly gerotor gears
• 27% more pressure and scavenge gear volume over stock
• 42% more scavenge volume with matched passages, port sizing and holes to the engine case
• 46% more oil volume to the crankshaft and connecting rod bearing
• 15°- 25° cooler engine temperatures
• 15°- 30° cooler oil temperatures
• 10-30 more PSI of oil pressure
• Reduces wet sumping, blow by and oily air cleaners
• Magnets to help protect gears and pressure relief valve
• Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved
• Made in the USA

Notes

• Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio
• FEULING test results show a 50% reduction of engine sump oil level.
• Feuling does not recommend tuning beyond stock emissions standards.

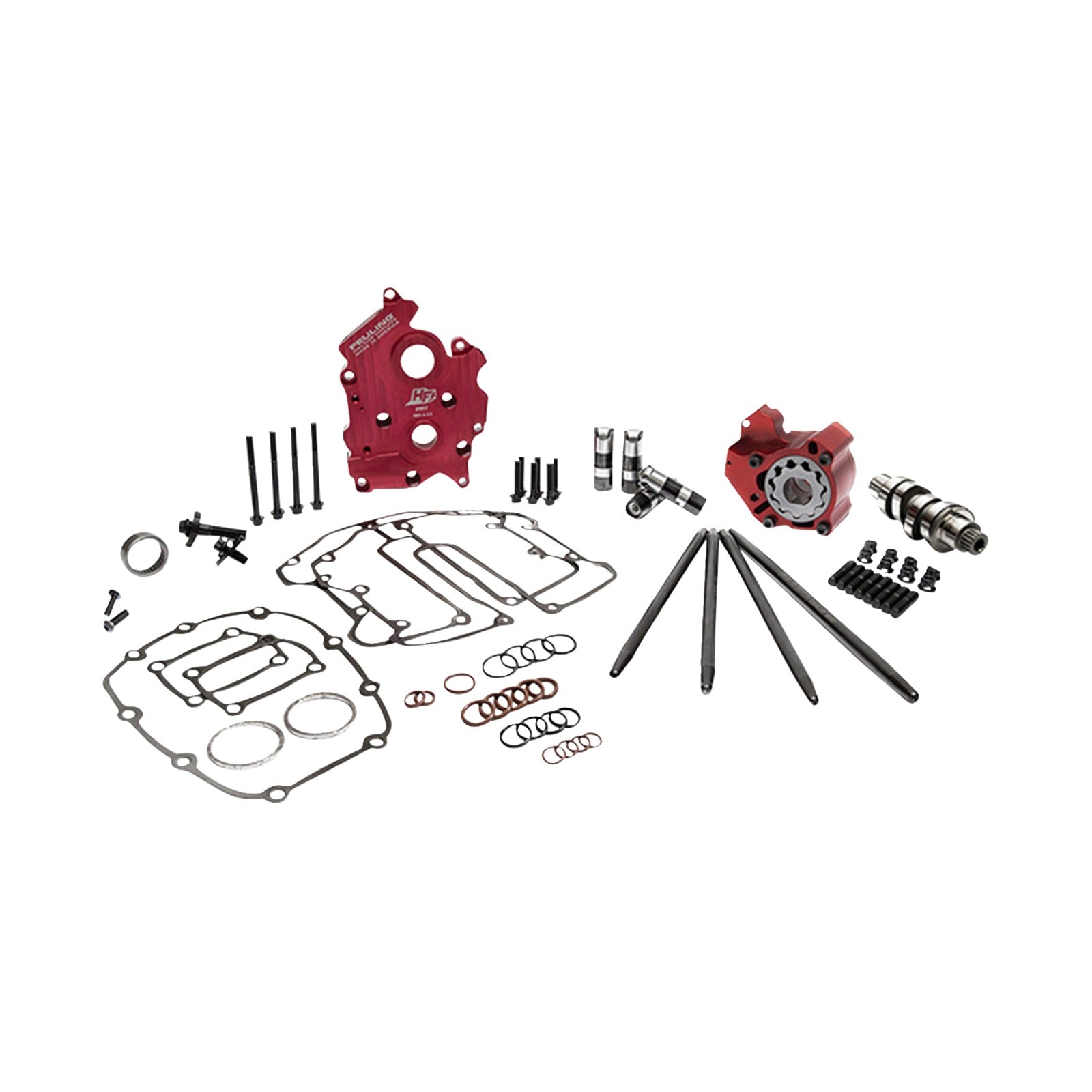

• Kit Includes:
• • 487 Reaper Camshaft
• • HP+ Pushrods
• • Race Series® Lifters
• • High Flow Camplate
• • Race Series® Oil Pump
• • Cam Installation Kit
• • ARP Rocker Studs and Nuts
• • Camplate/Oil Pump Fasteners
