DAKOTA DIGITAL - MVX SERIES ANALOG GAUGE SYSTEM - BLACK/GRAY/BLACK
$595.00
Premium Brand Partners
Performance brands we stand behind.
Curated For Harley Builds
Platform-specific parts that make sense.
Parts We'd Run Ourselves
Quality standards we actually believe in.
Trusted Checkout
Safe and easy shopping.
Product Details

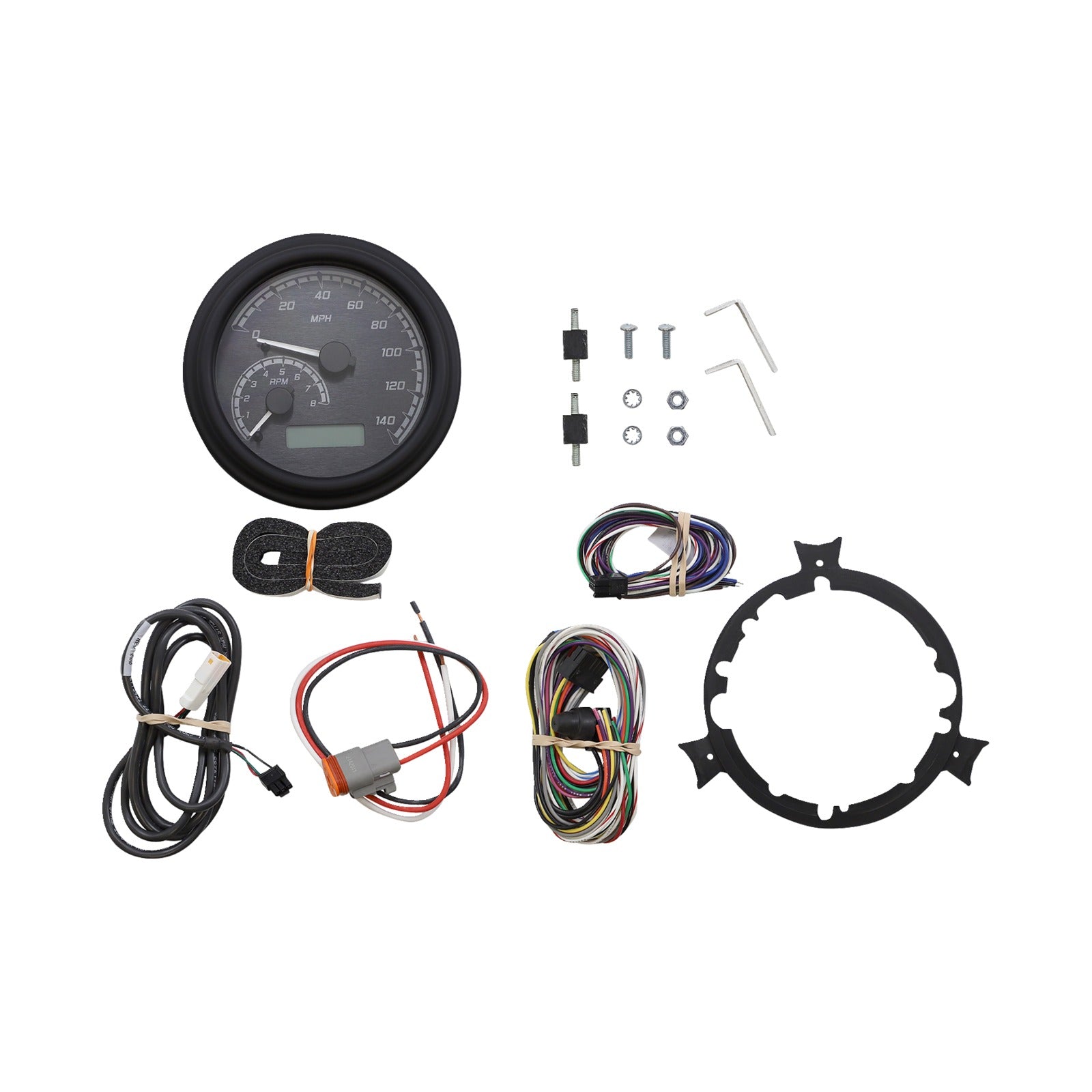

MVX Series Analog Gauge System - Black/Gray/Black
Highlights
- Has 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge
- Systems for '99-'03 models feature seven user-selectable colors for pointer, backlight and LCD message center (red, green, blue, teal, magenta, amber or white)
- Systems for '11-'22 models feature 31 user-selectable colors or pointer, backlight and LCD message center
- 8,000 rpm tachometer has adjustable shift point and can display in digital numeric readout
- Resettable miles to service with a warning (user settable countdown) and hour meter
- Clock function (12-hour format)
- Voltage readout with low-voltage alert
- Cylinder head temperature sensor (if bike is equipped with factory sender unit)
- Oil pressure sending unit (sold separately, part #s 2212-0513 or DS-250019
- Seven-speed gear position indicator, compatible with 3- to 7-speed transmissions
- Security system indicator
- Automatic turn signal cancelling compatible
- Wait to start/check engine light function
- Can perform performance calculations such as 0-60 time, top speed and peak rpm recall, 1/4 mile time and speed
- Wiring installation is cut/splice; not a direct plug-in gauge
- Case diameter measures 4-1/4" and bezel diameter of 4-5/8"
Notes
- Not direct plug in, must be hardwired.
- 1996-2003 Harley-Davidson FLHR Road King (Street)
- 1996-1997, 2000-2003 Harley-Davidson FLHRI Road King (Street)
- 1996-2003 Harley-Davidson FLSTC Heritage Softail Classic (Street)
- 1996-2003 Harley-Davidson FLSTF Fat Boy (Street)
- 1996 Harley-Davidson FLSTN Heritage Softail Special (Street)
- 1996-2003 Harley-Davidson FXDWG Dyna Wide Glide (Street)
- 1996-1999 Harley-Davidson FXSTC Softail Custom (Street)
- 1996-2003 Harley-Davidson FXSTS Springer Softail (Street)
- 1996-1997 Harley-Davidson FXSTSB Bad Boy (Street)
- 1997-2003 Harley-Davidson FLSTS Heritage Springer (Street)
- 1998-2003 Harley-Davidson FLHRCI Road King Classic (Street)
- 1998-1999 Harley-Davidson Road King EFI FLHR (Street)
- 1999-2003 Harley-Davidson FXST Softail Standard (Street)
- 1999-2003 Harley-Davidson FXSTB Night Train (Street)
- 2000-2003 Harley-Davidson FXSTD Softail Deuce (Street)
- 2001-2003 Harley-Davidson FLSTCI Heritage Softail Classic (Street)
- 2001-2003 Harley-Davidson FLSTSI Heritage Springer (Street)
- 2001-2003 Harley-Davidson FXSTBI Night Train (Street)
- 2001-2003 Harley-Davidson FXSTDI Softail Deuce (Street)
- 2001-2003 Harley-Davidson FXSTI Softail Standard (Street)
- 2002-2003 Harley-Davidson FLSTFI Fat Boy (Street)
| Calibration | 0 rpm - 8,000 rpm / 0 mph - 140 mph |
|---|---|
| Face Color | Gray / Black |
| Features | Backlit / 7 User-Selectable Colors |
| Housing Color | Black |
| Model | MVX Series |
| Outside Diameter | 4-5/8" |
| Product Name | Gauge |
| Riding Style | Street |
| Type | Analog Speedometer |
| Units | Each |
