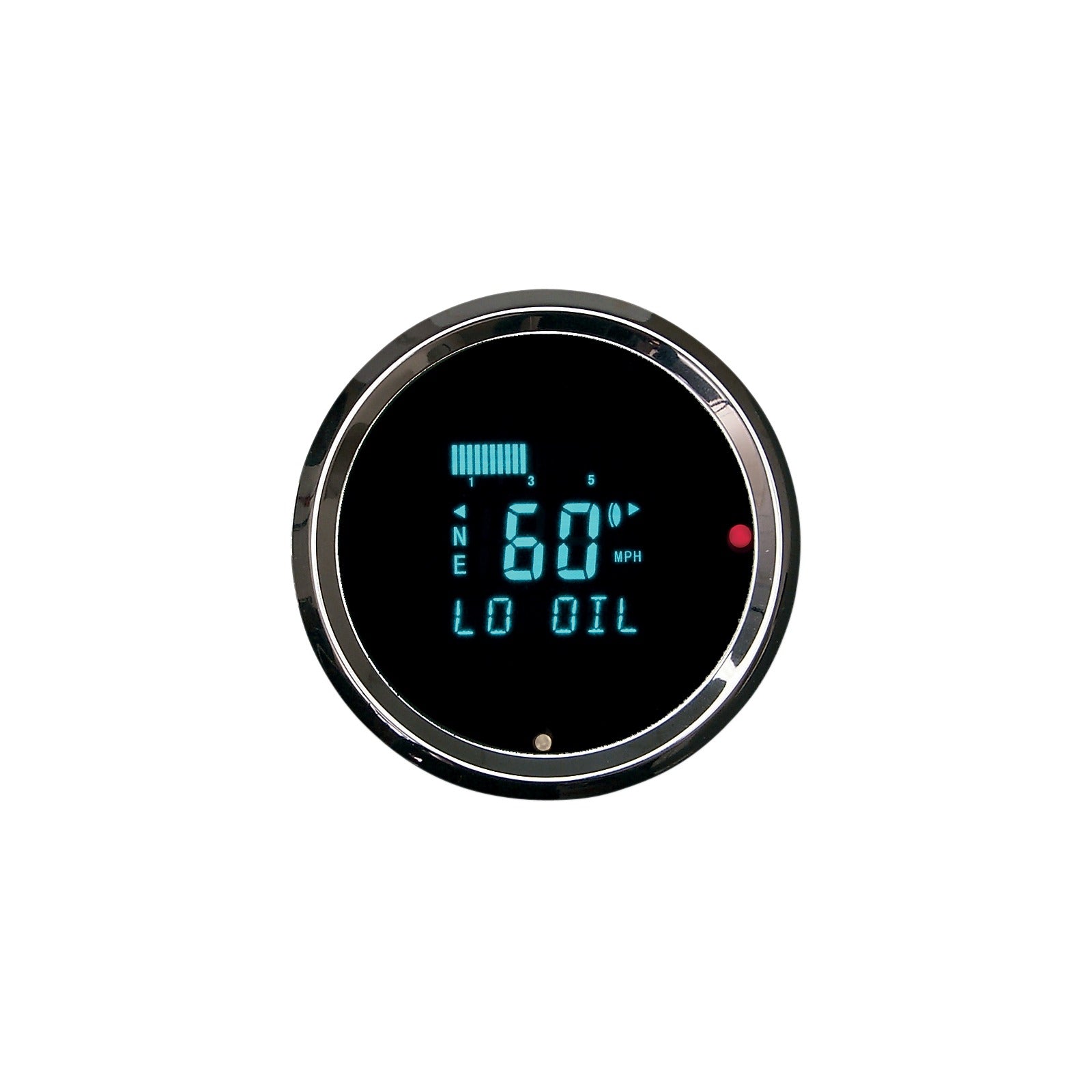

3016 Series Odyssey II Speedometer/Tachometer with Indicators

Highlights

• High-quality digital instruments that offer stable, accurate and easy-to-view readings
• Teal display offers high-contrast visibility, even in sunlight
• All gauges have machined aluminum housings, chrome front bezels and non-glare, scratch-resistant lenses
• Adjustable 255 mph speedometer calibrates easily to almost any gearing and tire size combination; push button calibration
• Tachometer displays as bar graph and features an adjustable shift point warning
• Tachometer calibration is easily adjusted for combinations of one to 15 cylinders without using coils
• Odometer has two resettable trip meters, an hour meter and miles-to-service meter with warning
• Features turn signal, neutral, low oil pressure, low voltage, high beam and security indicators
• Performs calculations and displays high speed recall, high rpm recall, 0-60 timer and 1/4-mile time and speed
• Displays “check engine” and “wait to start” lights
• Gear position indicator works with 3- to 6-speed transmissions
• Automatic turn signal canceling compatible
• 3-3/8” speedometer/tachometer will fit the 96-06 FLTR, FLHT fairing.

Notes

• 3-3/8” speedometer/tachometer will fit the 96-06 FLTR, FLHT fairing.
• Use the same speed sensors as Part Number 2210-0038.
